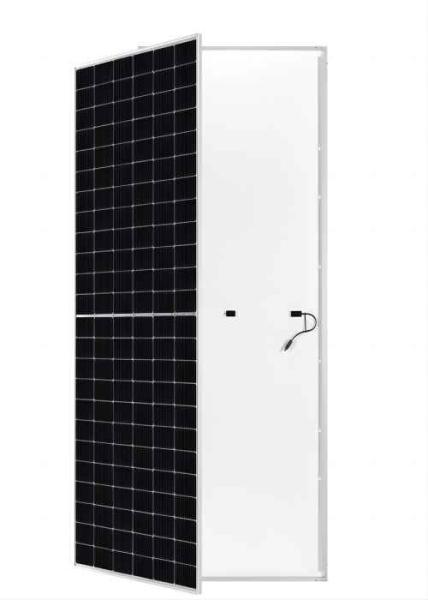

550W Mono TW Solar Module 540W 545W Bifacial Solar Panel 555W 560W

Brand Name : TW SOLAR

Model Number : TWMPD-72HD

Certification : IEC ISO

Place of Origin : China

MOQ : 1 PCS

Price : $0.14~$0.15

Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 10000+peices/month

Delivery Time : 5-15 days

Packaging Details : carton pallet

Cell size : 182mmx182mm

Type : PERC, Half Cell, Bifacial, Double-glass

Panel Efficiency : 21.70%

Certificate : TUV/CGC/CE

Panel Dimensions : 2278X1134X30mm

Cells : Monocrystalline silicon cell

Contact Now

TW Solar Module 550w Mono 540W 545W Bifacial Solar Power Panels 555W 560

Features

1. Adopting multi-main shed (MBB) half-sheet technology, the output power is away from 410W, and the conversion efficiency of the module reaches 21.17%.
2. Anti-PID performance. The PID (Potential Induced Degradation) resistance authority test(85°C/85% RH, 96 hours) under the harsh conditions of the industry minimizes the chance of degradation caused by the PID.
3. 10 main grid cells. All the cells are upgraded to 10/11 main grid cells,which have stronger current collection capability and more stable power
4. Mechanical load. Certified for wind load of 2400 Pa at the back of the assembly and snow load of 5400 Pa at the front.
5. Excellent low light power generation performance. Excellent electrical performance output under low light conditions.
6. Low light attenuation. Rigorous ATLAS steady-state light testing ensures excellent photoluminescence performance for each batch of modules.
7. Rigorous EL testing. Spatial resolution is less than 0.5 mm,and more than two EL tests before and after to ensure zero defects inside the component.
8. Fully automated component production line. Guarantee 100% online production 100% online inspection to ensure consistent product quality.

Electrical Characteristies(STC) Temperature Ratings
Module Type:TWMPD-72HDXXX Temporature Coefficient [Pmax -034%℃
Maximum Power. Pmax [W] 540 545 550 555 560 Temperature Coefficient [Voc] -0.28%/℃
Open Circuit Waltage:voc [M] 49.70 49.90 50.10 50.30 50.50 Temperature Coefficient llsc) 005%/℃
Short Circuit Cument Ise[A] 13.78 13.83 13.88 13.93 13.98 NMOT 45±2℃
altage at Maomum Power.Vmp[M] 41.56 41.76 41.96 42.16 42.36
Current at Maximum Power.Imp [A] 13.00 13.05 13.11 13.17 13.23
Madue Eficiency:n[% 209 211 21.3 21.5 21.7
STC: Iradiance 1000Wm², Cell Tempeature 25C,Ar Mass1.5,Measuring Tolerance 3%
Electrical Characteristics (NMOT) Mechanical Parameters
Maximum Power: Fmax lW 408.6 4124 4162 420.0 4238 cells TPC
Open Qnuit Voltaga:voc [M] 46.48 46.74 47.01 4728 47.47 Cell Orientation 144[6X24
Short Circuit Curent: Isc[A] 11.04 11.09 11.12 11.16 11.20 Dimension 227842 X1134±2×30mm
Voltage at Maoimum Power:Vmp [M] 3845 38.67 38.90 39.12 3931 Weight 32.7kg
Current at Maximum Rower: Imp [A] 10.62 10.66 10.70 10.74 10.79 ront Glass 20mm high tarsmitangn,ARcrated temponed dass
NMOT: Iradiance 800Wm²,Ambient Temperature 20°℃,Ar Mass1.5, Wind Speed 1ms Rear dass 20mmhightransmitance,coated tempered dass
Electrical characteristics with different rear side power gain Frame Anodized aluiminum alloy frame
Maximum Power.Pmax[W] 5670 5723 577.5 582.8 5880 Junction Box P6B 3 diodes
5% Module Eficiengy:n[%] 21.9 22.2 22.4 226 22.8 Output Cable 40mm²
15% Maymum Power;PmatW] 6210
Module Eficiengy:n[%]240		 6268
24.3		 6325
24.5		 6383
247		 6440
24.9		 Cable Length +400mm,-200mm, length can be customized
Wind/Snow Load 2400Pa/5400Pa
25% Maxmum Power: Pmax[W
Modde Efficiency:n[]		 6750
26.1		 6813
26.4		 687.5
266		 6938
269		 7000
27.1		 Pockaging 36pcs per pallet, 720pcs per 40HC

550W Mono TW Solar Module 540W 545W Bifacial Solar Panel 555W 560W

Chongqing PVkingdom New Energy Co.,Ltd., is a new energy technology enterprise engaged in new energy project design,
product supply, project construction andother PV services.
  • More than 12 years experience in solar power generation system.
  • Completed dozens of photovoltaic projects in China
  • Photovoltaic product supply,design,construction in global business
  • Project design of solar power generation system.
  • The product series includes solar panels, inverters,batteries, mounting brackets.
  • Project design of solar power generation system.
  • Provide one-stop photovoltaic solution.
Good after-sales service
550W Mono TW Solar Module 540W 545W Bifacial Solar Panel 555W 560W
550W Mono TW Solar Module 540W 545W Bifacial Solar Panel 555W 560W

WHY CHOOSE US

1. More than 12 years experience in solar power generation system.

2. Project Design of Solar Power Generation System.

3. Located in Asia's Largest Lithium Battery industry Zone.

4. Passed the certification of TUVULCE and JET

5. The product series includes solar panels, inverters,batteries, mounting brackets.

6. Provide one-stop photovoltaic solution.

550W Mono TW Solar Module 540W 545W Bifacial Solar Panel 555W 560W

550W Mono TW Solar Module 540W 545W Bifacial Solar Panel 555W 560W
