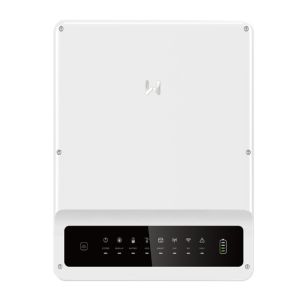

IP65 Hybrid Solar Inverter 10kW Goodwe BT Series GW10K-BT

Name: IP65 Hybrid Solar Inverter 10kW Goodwe BT Series GW10KBT
Brand: Goodwe
Price: 1 USD

Wholesale IP65 Hybrid Solar Inverter 10kW Goodwe BT Series GW10K-BT from china suppliers

Brand Name : Goodwe

Model Number : GW10K-BT

Certification : SAA / CE / ROHS / ISO9001 / CCC

Place of Origin : China

MOQ : 10 units

Price : negotiable

Supply Ability : 1000units/week

Packaging Details : carton package

Type : DC/AC Inverters

Phase : single Phase

Inverter Efficiency : 98.3%

Input Voltage : 180-1500V

Output Frequency : 50/60Hz

Protection degree : IP65

Operating Altitude : 4000(>3000 derating)

Operation Temperature Range : -30~60℃

User Interface : LED, Bluetooth+APP

PID recovery : optional

Contact Now

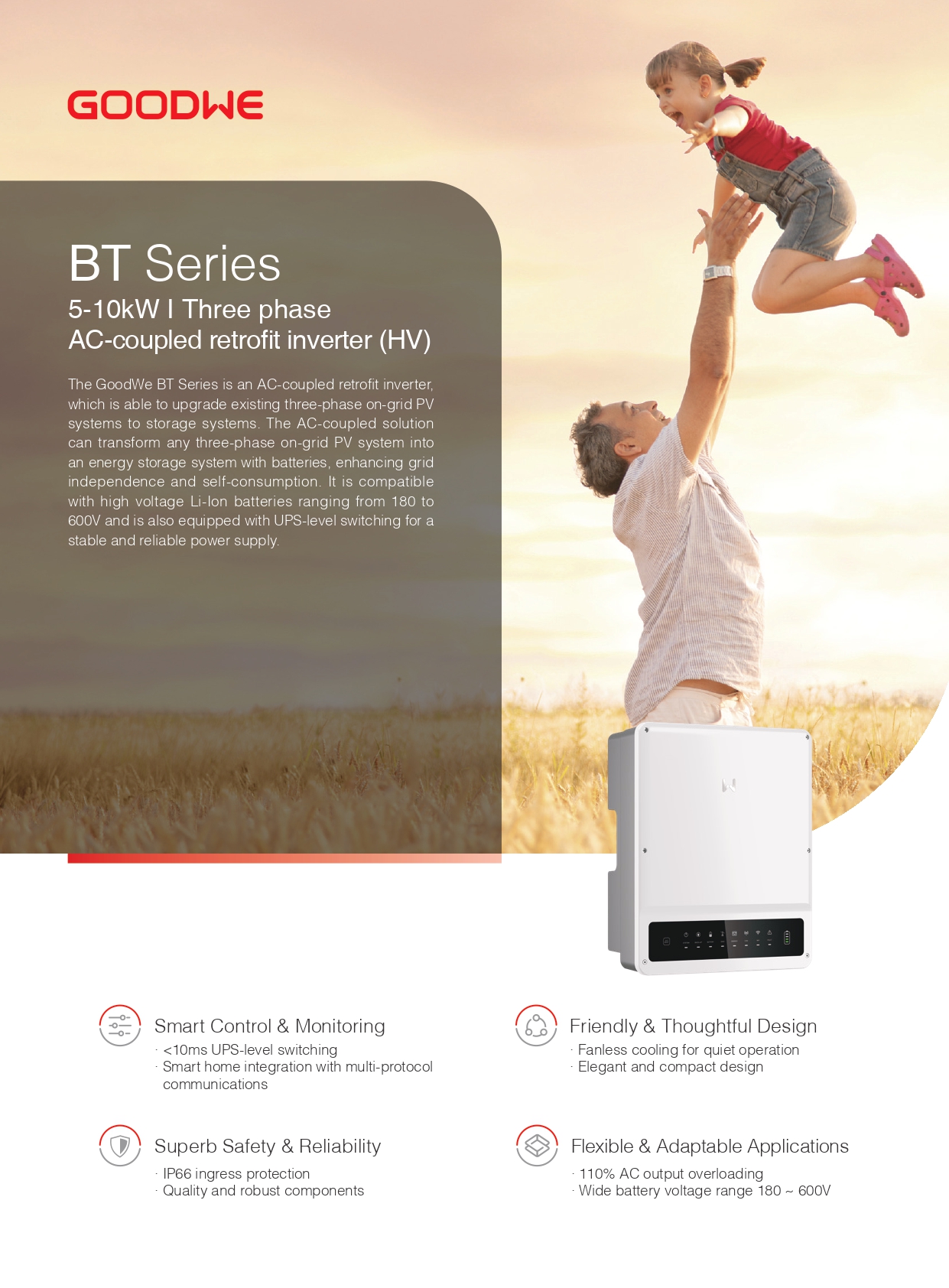

Goodwe BT Series GW10K-BT Hybrid Solar Inverter Goodwe Hybrid Inverter 10kW three phase hybrid inverter AC-coupled

Battery Input Data
Battery Type	Li-Ion	Li-Ion	Li-Ion	Li-Ion
Nominal Battery Voltage (V)	500	500	500	500
Battery Voltage Range (V)	180 ~ 600	180 ~ 600	180 ~ 600	180 ~ 600
Start-up Voltage (V)	180	180	180	180
Number of Battery Input	1	1	1	1
Max. Continuous Charging Current (A)	25	25	25	25
Max. Continuous Discharging Current (A)	25	25	25	25
Max. Charging Power (W)	5000	6000	8000	10000
Max. Discharging Power (W)	5000	6000	8000	10000
AC Output Data (On-grid)
Nominal Output Power (W)	5000	6000	8000	10000
Nominal Apparent Power Output to Utility Grid (VA)	5000	6000	8000	10000
Max. Apparent Power Output to Utility Grid (VA)^15	5500	6600	8800	11000
Max. Apparent Power from Utility Grid (VA)	10000	12000	15000	15000
Output Voltage Range (V)	0 ~ 300	0 ~ 300	0 ~ 300	0 ~ 300
Nominal Output Voltage (V)	400 / 380, 3L / N / PE	400 / 380, 3L / N / PE	400 / 380, 3L / N / PE	400 / 380, 3L / N / PE
Nominal AC Grid Frequency (Hz)	50 / 60	50 / 60	50 / 60	50 / 60
AC Grid Frequency Range (Hz)	45 ~ 55	45 ~ 55	45 ~ 55	45 ~ 55
Max. AC Current Output to Utility Grid (A)	8.5	10.5	13.5	16.5
Max. AC Current From Utility Grid (A)	15.2	18.2	22.7	22.7
Power Factor	~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion	<3%	<3%	<3%	<3%
AC Output Data (Back-up)
Back-up Nominal Apparent Power (VA)	5000	6000	8000	10000
Max. Output Apparent Power without Grid (VA)^*2	5000 (10000@60sec)	6000 (12000@60sec)	8000 (15000@60sec)	10000 (15000@60sec)
Max. Output Apparent Power with Grid (VA)	5000	6000	8000	10000
Max. Output Current (A)	8.5	10.5	13.5	16.5
Nominal Output Voltage (V)	400 / 380, 3L / N / PE	400 / 380, 3L / N / PE	400 / 380, 3L / N / PE	400 / 380, 3L / N / PE
Nominal Output Frequency (Hz)	50 / 60	50 / 60	50 / 60	50 / 60
Output THDv (@Linear Load)	<3%	<3%	<3%	<3%
Efficiency
Max. Efficiency	97.6%	97.6%	97.6%	97.6%
European Efficiency	97.2%	97.2%	97.5%	97.5%
Max. Battery to AC Efficiency	97.6%	97.6%	97.6%	97.6%
Protection
PV Insulation Resistance Detection	Integrated	Integrated	Integrated	Integrated
Residual Current Monitoring	Integrated	Integrated	Integrated	Integrated
Battery Reverse Polarity Protection	Integrated	Integrated	Integrated	Integrated
Anti-islanding Protection	Integrated	Integrated	Integrated	Integrated
AC Overcurrent Protection	Integrated	Integrated	Integrated	Integrated
AC Short Circuit Protection	Integrated	Integrated	Integrated	Integrated
AC Overvoltage Protection	Integrated	Integrated	Integrated	Integrated
General Data
Operating Temperature Range (°C)	-35 ~ +60	-35 ~ +60	-35 ~ +60	-35 ~ +60
Relative Humidity	0 ~ 95%	0 ~ 95%	0 ~ 95%	0 ~ 95%
Max. Operating Altitude (m)	4000	4000	4000	4000
Cooling Method	Natural Convection	Natural Convection	Natural Convection	Natural Convection
User Interface	LED, APP	LED, APP	LED, APP	LED, APP
Communication with BMS^*3	RS485, CAN	RS485, CAN	RS485, CAN	RS485, CAN
Communication with Meter	RS485	RS485	RS485	RS485
Communication with Portal	WiFi, LAN	WiFi, LAN	WiFi, LAN	WiFi, LAN
Weight (kg)	21	21	21	21
Dimension (W × H × D mm)	415 × 516 × 180	415 × 516 × 180	415 × 516 × 180	415 × 516 × 180
Topology	Non-isolated	Non-isolated	Non-isolated	Non-isolated
Self-consumption at Night (W)^*4	<15	<15	<15	<15
Ingress Protection Rating	IP66	IP66	IP66	IP66
Mounting Method	Wall Mounted	Wall Mounted	Wall Mounted	Wall Mounted

IP65 Hybrid Solar Inverter 10kW Goodwe BT Series GW10K-BT
